Sirius Backcountry
Performance
Cruise 134 KTAS Flight
Stall Vso 39 KCAS
Stall Vs1 51 KCAS
Maneuvering speed 108 KIAS
Never exceed speed 138 KIAS
Best rate of climb speed Vy 69 KIAS
Best angle of climb Vx 63 KIAS
Best climb rate 1200 ft (1800 -2200 ft/min ROTAX 916)
Take-off roll distance 200 – 300 ft (ground roll)
Take-off distance 300 – 400 ft (50ft obstacle)
Landing distance 100 ft
Landing distance 320 ft (50ft obstacle)
Load factor +4/-2g
Fuel consumption 4.5 – 7.5 gal/hr depending on engine selection
Range 700 miles
Dimensions
Length 22.15 ft
Height 7.38 ft
Wing span 30.8 ft
Wing area 121.2 ft2
Wing loading 13.64 lb/ft2 (MTOW 1653 lbs)
Horizontal tail width 9.85 ft
Cabin width 45 in
Weight
Empty weight 950- 1020 lbs
Gross weight 1653
Fuel tank Capacity 34.4 gallon
Luggage weight 55 lbs (rear luggage compartment)
Luggage rear compartment size 6.5 cubic ft
Luggage Pod Size 3.5 cubic ft
Engine/Propeller
DUC Tiger constant speed
TL Predator constant speed

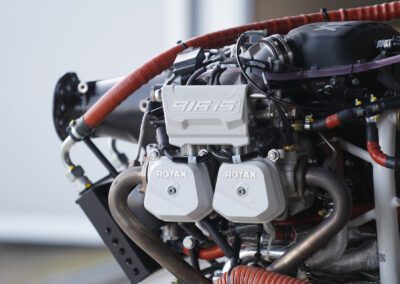

Rotax 912ULS/iS
Rotax 914 iS
Rotax 916iS
Turbotech Turboprop TP-R90 (140 HP)
Equipment
Undercarriage
Alaska Gear Company Bushwheel 26” or 29” Airstreak Tires
Acme Aero Stinger tailwheel suspension
VFR
Garmin Dual GDU 460 G3X touch display
Garmin GDU 450 G3X single display
Garmin GMC 507 auto pilot with GARMIN GSA smart servos
Garmin GTR 205 panel mount radio
Garmin G5
Garmin Gi 275
Garmin GTR 20 remote radio
ELT Kannad
Bose Lemo connectors
Dash lighting for night flight
Infinity grips for both controls
TCW 6amp/hr backup battery
IFR
Garmin GNX 375
Garmin GNC 355
Garmin GTN 650Xi
Garmin GTN 750Xi
Garmin GNC 215 Nav/Com
Garmin GMA 245 and 245R
Garmin 2nd GSU-25C
Garmin GAP 26 AOA probe heated
Airframe Equipment/Safety
Stratos Magnum Ballistic Parachute Recovery System (Magnum 601 750kg)
Steerable nose wheel
Hydraulic differential disc brakes with brake pedals for both pilot and co-pilot
Parking brake
Locking canopy
Locking gas caps
Tinted canopy and protective cover available
Elevator trim
Electric flap controls
Rear luggage compartment 6.5 cubic feet
Four point seat belts
.
Designed for performance and built for adventure
The Sirius BackCountry is an unparalleled cost-effective aircraft that will satisfy pilots who want an immersive and exhilarating flight experience in whatever conditions or environment they choose to fly.
Building on the stability of the revered E/AB high-wing Sirius, this MOSAIC-ready tailwheel aircraft enables pilots and crew to expand their mission list of destinations for sport, business or adventure. The Sirius Backcountry is a trifecta of high-performance capabilities, luxurious comforts, and multi-function practicalities.
Flight performance was paramount in the redesign of this aircraft. The latest technology in CAD and 3D modeling was utilized to enhance the platform with amazing visibility and dynamic flight characteristics. Powered by Rotax engines (912UL/iS, 914iS or 916iS) or Turbotech (Turboprop TP-R90), the max STOL (Short Takeoff and Landing) takeoff performance of less than one hundred (100) feet and 1800 – 2200 FPM climb out (Rotax 916iS), can make every flight an adventure.
Similarly to all TL Aircraft, luxury and comfort are key components of the Sirius BackCountry design. The leather heated seats, spacious cockpit, and Garmin avionics suite options for VFR and IFR configurations allow stress-free flights of over 700 miles. A substantial storage area of 6.5 cu. feet with an easy-access cargo door, and undermount brackets for securing items like an Ebike will transform a routine ordinary flight into an adventurous journey.
The pneumatic tail wheel assembly, Alaskan Gear Company’s Alaskan Bushwheel 26-inch wheels, and light-weight carbon Kevlar composite mix airframe provide the ruggedness to manage all types of airstrips. You will truly have the capability of landing on small strips like sandbars and carved out rural fields.
And as is standard with all TL aircraft, the Sirus BackCountry is equipped with a Stratos Magnum Ballistic Parachute Recovery System ensuring the safety of the pilot, crew and aircraft.
There are many reasons backcountry flying has become immensely popular in North America. One of the primary reasons is the challenge of becoming a better pilot. Thousands have also discovered the crowd-drawing STOL competitions across the United States. What draws pilots to STOL is similar to what is drawing them to backcountry adventures. The skills required for true backcountry pilots are unique. Pursuing that experience is cost-effective in a Sirius BackCountry.
Creative, custom paint schemes are encouraged with the Sirius BackCountry! Every Sirius BackCountry is custom ordered, built, and delivered with the same passion and commitment to quality as the first TL aircraft over 35 years ago.
Contact us today to schedule a demo flight and experience for yourself why the Sirus BackCountry is Redefining Sport Aviation.
