Sting S4

Performance

Cruise 120 KTAS
Stall Vso 40 KCAS
Stall Vs1 45 KCAS
Maneuvering speed 97 KIAS
Never exceed speed 153 KIAS
Best rate of climb speed Vy 75 KIAS
Best angle of climb Vx 72 KIAS
Best climb rate 1200 ft/min (1400 ft/min Rotax 914)
Glide ratio: 12:1
Take-off roll distance (ground roll) 490 ft
Take-off distance (50ft obstacle) 940 ft
Landing distance 390 ft
Landing distance (50ft obstacle) 1200 ft
Load factor +4/-2g
Fuel consumption 4.5 – 5.5 gal/hr
Range 750 miles

Dimensions

Length 20.3 ft
Height 6.3 ft
Wing span 30 ft
Wing area 113 ft2
Wing loading 11.68 lb/ft2 (MTOW 1320 lbs)
Horizontal tail width 8.75 ft
Cabin width 45 in

Weight

Empty weight 820 – 870 lbs
Gross weight 1320 lbs
Fuel tank Capacity 32.5
Luggage weight 55 lbs
Luggage compartment size 5.1 cubic ft

Engine/Propeller

DUC Swirl
DUC Flash
Rotax 912ULS/iS
Rotax 914 Turbo/iS
Rotax 914iS

Equipment

VFR
Garmin Dual GDU 460 G3X touch display
Garmin GDU 450 G3X single display
Garmin GMC 507 auto pilot with GARMIN GSA smart servos
Garmin GTR 205 panel mount radio
Garmin G5
Garmin Gi 275
Garmin GTR 20 remote radio
ELT Kannad
Bose Lemo connectors or GA
Dash lighting for night flight
Infinity grips for both controls
TCW 6amp/hr backup battery

IFR
Garmin GNX 375
Garmin GNC 355
Garmin GTN 650Xi
Garmin GNC 215 Nav/Com
Garmin GMA 245 and 245R
Garmin 2nd GSU-25C
Garmin GAP 26 AOA probe heated

Airframe Equipment/Safety

Stratos Magnum Ballistic Parachute Recovery System (Magnum 501 600kg)
Steerable nose wheel
Hydraulic differential disc brakes with brake pedals for both pilot and co-pilot
Parking brake
Locking canopy
Locking gas caps
Tinted canopy and protective cover available
Electric aileron and elevator trim
Electric flap controls
Rear luggage compartment 5.1 cubic feet
Four point seat belts
Adjustable rudder pedals
Wheel fairings
Cabin heat with defog vents for canopy
Anticollision lights
Nav lights
Landing lights in wings
Dash lighting for night flight
Leather glare-shield
Molded drink holders in lower cockpit
Tail skid

Spacious, Speedy, & Sporty

The Sting S4 takes the “sport” of light sport aviation seriously as it is quick, responsive, and balanced with a reputation for being fun to fly. This sophisticated and agile aircraft is the ultimate carbon composite in its class. From the outset, the Sting S4 impresses with its superior cabin visibility, minimal noise levels, and exceptional aircraft features, ensuring an optimal flying experience.

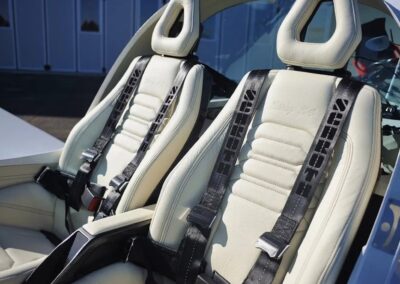

Refined through four generations, the Sting S4 epitomizes engineering excellence and ergonomic comfort. Featuring a spacious bubble canopy with clear visibility, ergonomic controls, and an advanced glass cockpit, it entices you into its luxurious cabin with leather heated seats for comfortable flights.

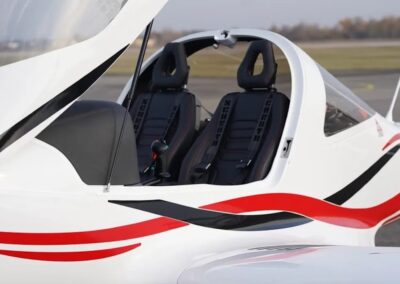

This side-by-side two-seat light sport aircraft offers a spacious cabin with a width of 45 inches, comfortably accommodating individuals up to 6’3” tall. Attention to detail enhances the experience for both pilots and passengers. Notably, the cockpit in front of the passenger is tilted to improve the pilot’s view. The aircraft provides ample luggage space, measuring 5 feet. Additionally, the canopy is designed for easy operation, ensuring convenient access to the cabin.

Like all TL models, the Sting S4 is an all-composite technology lending to a strong and light airframe. The nose gear has strength and durability to easily handle even the toughest landings. There are dual controls, adjustable foot pedals, a steerable front wheel, and electric flaps. Taxiing is delightfully simple, with a fine view over the nose. The nosewheel steers through the rudder pedals, and if a very tight turn is required, differential braking can be applied via the toe-operated hydraulic disc brakes. The sophisticated aerodynamic refinements of the aircraft make agile maneuverability effortless.

Powered by the Rotax 912ULS/iS, Rotax 914 Turbo/iS or Rotax 914iS, the Sting S4 has a cruise of 120 KTAS and a range of 750 miles. A full suite of Garmin avionics for either VFR or IFR glass cockpits compliment the sleek lines of this beautiful aircraft. And as is standard with all TL aircraft, the Sting S4 is equipped with a Stratos Magnum Ballistic Parachute Recovery System ensuring the safety of the pilot, crew and aircraft.

Additional options include but are not limited to Oxygen, and design of custom paint scheme. Every Sting S4 is custom ordered, built, and delivered with the same passion and commitment to quality as the first TL aircraft over 35 years ago.
