Sparker

Performance

Cruise 175-180 KTAS
Stall Vso 51 KCAS
Stall Vs1 58 KCAS
Maneuvering speed 105 KIAS
Never exceed speed 185 KIAS
Best rate of climb speed Vy 86 KIAS
Best angle of climb Vx 78 KIAS
Best climb rate 1400 ft (1800– 2400 ft/min ROTAX 916)
Take-off roll distance (ground roll) 575 ft
Take-off distance (50ft obstacle) 1150 ft
Landing distance 450 ft
Landing distance (50ft obstacle) 980 ft
Load factor +4/-2g
Fuel consumption 4.5 -8.5 gal/hr Depending on engine selection
Range 800 miles

Dimensions

Length 21.7 ft
Height 8.4 ft
Wing span 29.5 ft
Wing area 107 ft2
Wing loading 15.42 lb/ft2 (MTOW 1653 lbs)
Horizontal tail width 9.7 ft
Cabin width 49.7 in

Weight

Empty weight 950- 1020 lbs
Gross weight 1653 lbs
Fuel tank Capacity 34-41 gallons
Luggage weight 75-100 Lbs
Luggage compartment size 24 cubic ft
Luggage front compartment .5 cubic ft

Engine/Propeller

DUC Tiger constant speed
TL Predator constant speed
Rotax 912ULS/iS
Rotax 914iS
Rotax 916iS
Turbotech Turboprop TP-R90 (140 HP)

Equipment

VFR
Garmin Dual GDU 460 G3X touch display
Garmin GMC 507 auto pilot with GARMIN GSA smart servos
Garmin GTR 205 panel mount radio
Garmin G5
Garmin Gi 275
Garmin GTR 20 remote radio
ELT Kannad
Bose Lemo connectors
Dash lighting for night flight
Infinity grips for both controls
TCW 6amp/hr backup battery
Garmin GAP 26 AOA unheated

IFR
Garmin GNX 375
Garmin GNC 355
Garmin GTN 650Xi
Garmin GTN 750Xi
Garmin GNC 215 Nav/Com
Garmin GMA 245 and 245R
Garmin 2nd GSU-25C
Garmin GAP 26 AOA probe heated

Airframe Equipment/Safety

Stratos Magnum Ballistic Parachute Recovery System (Magnum 601 750kg)
Steerable nose wheel
Hydraulic differential disc brakes with brake pedals for both pilot and co-pilot
Parking brake
Locking canopy
Locking gas caps
Tinted canopy and protective cover available
Electric aileron and elevator trim
Electric flap controls
Front luggage compartment .5 cubic feet
Rear luggage compartment 24 cubic feet
Four point seat belts
Electric adjustable rudder pedals
Retractable gear
Cabin heat with defog vents for canopy
Anticollision lights
Nav lights
Landing lights in wings
Dash lighting for night flight
Leather glare-shield
Pneumatic retractable in dash iPad/iPhone holder with cup holder
Under seat drawer
Center console compartment for maps and storage
Molded drink holders in lower cockpit
Tail skid

Unmatched spacious luxury, performance and exhilaration

The Sparker embodies the aviation principle that a plane flies as well as it looks. It excels in speed and agility in the air, while its differentiating sleek lines stand out on the runway. Offering an immersive flight experience in a spacious cockpit, the Sparker is unmatched for pilots seeking both exhilaration and comfort for their missions.

The Sparker is the MOSAIC-ready light sport aircraft that offers stellar situational awareness due to its expansive canopy and digital imagery via three (3) state-of-the-art ten-inch Garmin G3X touch displays within easy reach of the pilot’s fingertips. Designed with a side-by-side two (2) seat configuration with dual control sidesticks, the Sparker’s cockpit is the widest in its category and can easily accommodate crew as tall as 6’6”.

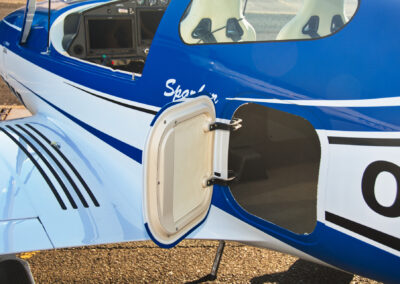

Pre-flight dilemmas regarding luggage are alleviated as the aircraft also touts the highest MTOW in the LSA category offering the largest luggage compartment of 24 cubic feet which is conveniently accessible from within the cabin as well as external doors. For perspective, even two (2) sets of golf clubs can easily be stored for those desiring a relaxing getaway.

The Sparker airframe, built on the proven Stream platform, ensures efficiency and high cruise speeds. Constructed with carbon and Kevlar fibers, it offers maximum strength at a low weight. A Kevlar shell forms the inner fuselage, further enhancing crew compartment strength. Every aircraft features a ballistic recovery chute for optimum safety as a standard option.

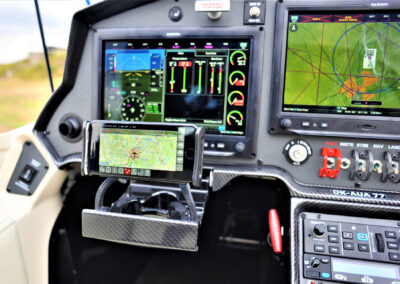

The Sparker’s cockpit is ergonomically contoured with individually regulated heated leather seats ensuring the comfort of the crew during flights at chilly altitudes. In addition to the unbeatable large instrument panel that includes three (3) ten-inch Garmin GX3 Touch Flight displays, the panel comes installed with versatile avionics equipment including hideaway info-tables for both pilot and co-pilot to hold a phone or tablet creating the ability to have five (5) displays in the cockpit. The info-tables could also be used as drink holders if desired. The throttles are purposely designed to be two (2) different hand sizes to avoid any confusion. The adjustable pedals, flaps and trim are electrically operated.

Additional options include but are not limited to selection of either a Rotax engine (912ULS/iS, 914iS, and 916iS) or TurboTech 140 HP Turbo engine, IFR capability, Oxygen, and design of custom paint scheme.

Every Sparker is custom ordered, built, and delivered with the same passion and commitment to quality as the first TL aircraft over 35 years ago.
